Overview

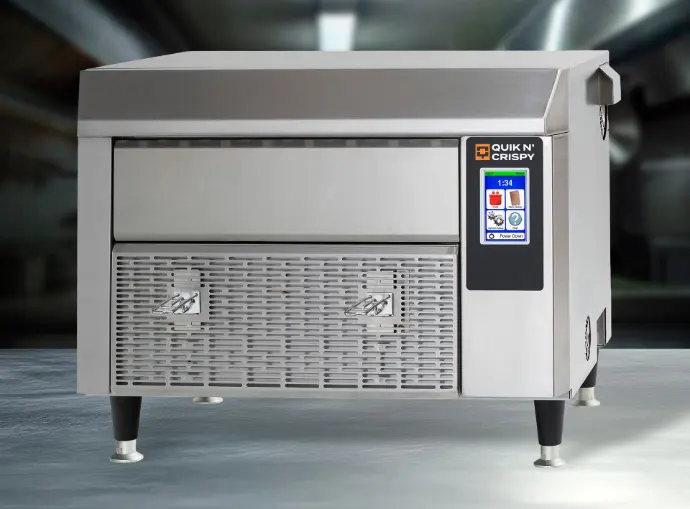

The Rapid Air Fryer® (RAF) is a state-of-the-art, commercial-grade kitchen appliance designed to fry, grill, and bake a variety of "oven-ready" foods using a combination of forced hot air and radiant heat. This innovative greaseless & ventless fryer eliminates the need for traditional vented hood systems, offering a safer, healthier, and more cost-effective solution for food service operations.
Key Features
- Health-Conscious Products: Eliminates the health risks associated with hot oil cooking, producing lower-fat food options that retain excellent taste and texture.
- Versatile Performance: Capable of frying, grilling, and baking a variety of frozen, oven-ready food items, including french fries, egg rolls, corn dogs, battered vegetables, cheese sticks and more.
- Advanced Air Filtration: Equipped with a catalytic converter and an air filtration system to limit grease-laden vapors, complying with EPA 202 and UL710B standards.
- User-Friendly Interface: Equipped with an intuitive LCD touch screen control panel, making it easy to operate and customize cooking settings.
- Preprogrammed Recipes: Can store up to 108 recipes with six cooking groups, each group accommodating 18 recipes.
- Recipe Customization: Easily edit and customize recipes via the LCD controller, including time, temperature, and blower speed settings.
- Real-Time Monitoring: Displays cooking progress, current oven temperature, and other essential parameters for precise control.
- Hold & Reheat: Twice the holding times compared to deep fat fried menu items which is important for takeout orders. Reheat menu items in 90 seconds or less during rush periods!
- Safer for your Employees: Cool to the touch exterior, and no grease eliminates the mess and hazards of deep-fat fryers!

Specifications
- Model: RAF (Rapid Air Fryer)
- Dimensions: Width 29 Inches, Height 23 3/8 Inches, Depth 21 Inches.
- Weight: Approximately 200 lbs (74.8 kg)
- Shipping Dimensions: Length 48 Inches, Width 40 Inches, Height 35 Inches, Weight 230 lbs (95.5 kg)
- Electrical Requirements:
- USA: 208V/240V, 60Hz, Single Phase (NEMA #6-30R)
- Power Consumption:
- 208V USA (5760 Watts, 29 amps)
- 240V (5760 Watts, 24 amps)
Installation and Setup
- Quik n' Crispy® RAF Greaseless Fryer Shipment Includes:
- Cooking basket assembly and handles
- Drip tray
- Three-piece air plenum
- Removable front panel
- Adjustable legs
- Wire brush and scraper
- Installation kit
- Installation Recommendations:
- Choose a location accessible to employees and close to other kitchen equipment.
- Mount on a sturdy, stainless steel surface or food service table. (e.g. Quik n' Crispy Equipment Stand, Lite w/casters)
- Requires a minimum clearance of 1" (2.54 cm) from adjacent walls or equipment
- Ensure proper electrical connections per the specifications
- Simple setup with clear instructions provided in the owner's manual.
Maintenance and Cleaning
- Easy Maintenance: Designed for easy, toolless disassembly and cleaning with removable components like the Cooking Basket, Drip Tray, and Air Plenum.
- Cleaning Procedures:
- Daily cleaning involves brushing and scraping food particles from the Cooking Basket and Drip Tray.
- Weekly cleaning includes thorough washing and degreasing of components.
- Filters should be cleaned weekly and replaced every 1-3 months (depending on usage) to ensure optimal performance.
- Service and Support: Backed by a 1-year limited warranty on parts and 90-Day limited warranty on labor. Dedicated customer service support available for any operational questions or service requirements.
