GF 5

Watch Video

Overview

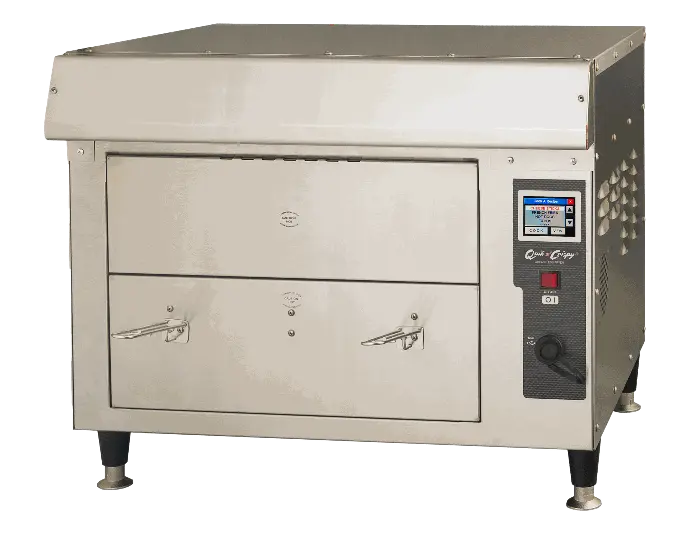

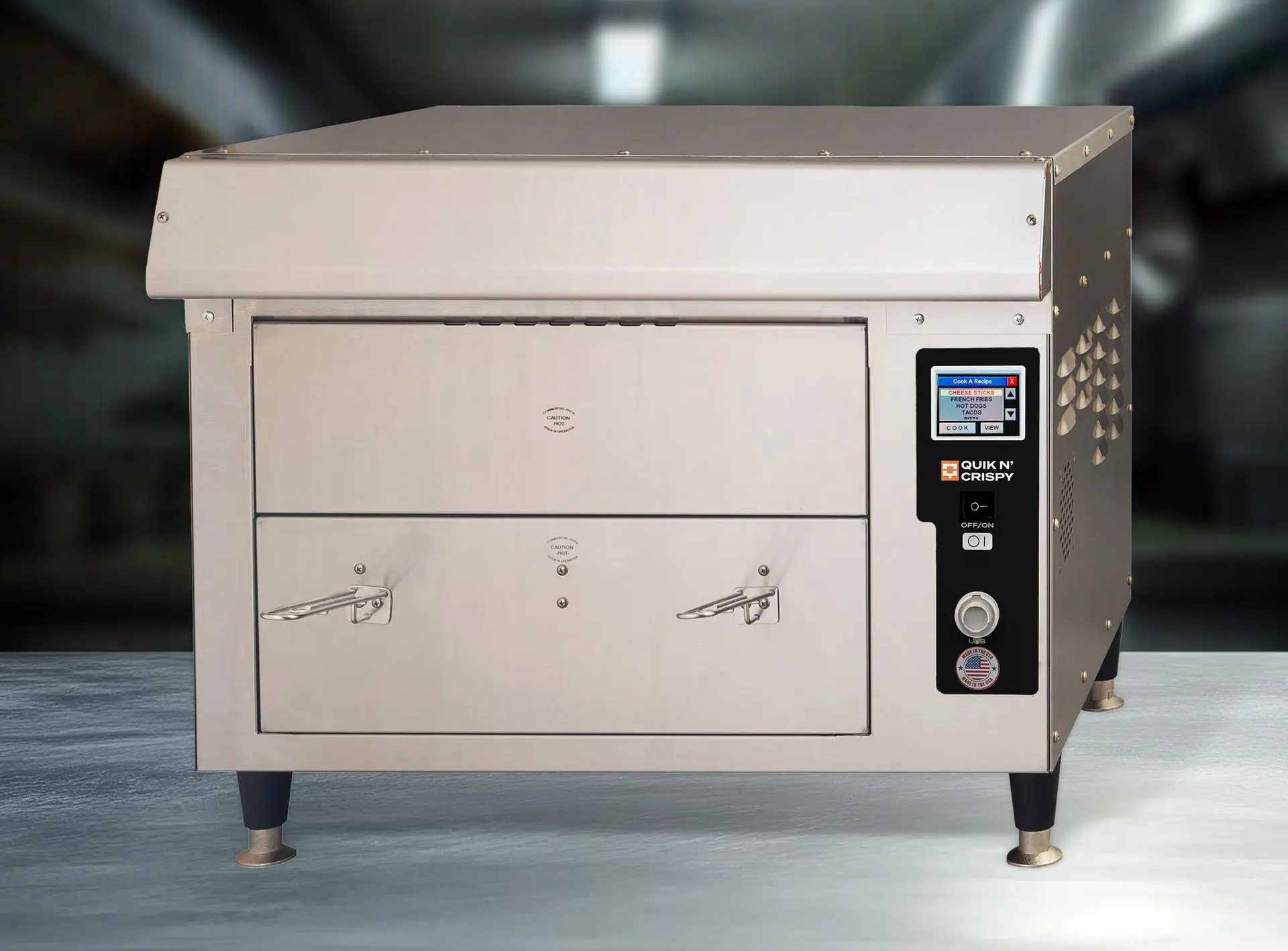

The Quik n' Crispy® GF5 Air Fryer is an advanced commercial kitchen appliance designed to fry, grill, and bake a wide variety of "oven-ready" foods using a combination of forced hot air and radiant heat. This technology offers a healthier and safer alternative to traditional deep-frying by eliminating the need for cooking oil, making it ideal for health-conscious food service establishments.

Key Features

    • Health-Conscious Products: Eliminates the health risks associated with hot oil cooking, producing lower-fat food options that retain excellent taste and texture.
    • Versatile Performance: Capable of frying, grilling, and baking a variety of frozen, oven-ready food items, including french fries, egg rolls, corn dogs, battered vegetables, cheese sticks and more.
    • User-Friendly Interface: Equipped with an intuitive LCD touch screen control panel, making it easy to operate and customize cooking settings.
    • Preprogrammed Recipes: Comes with 15 preprogrammed recipes with customizable time and temperature settings to suit various food items.
    • Recipe Customization: Easily edit and customize recipes via the LCD controller, including time and temperature settings.
    • Real-Time Monitoring: Displays cooking progress, current oven temperature, and other essential parameters for precise control.



Specifications

  • Model: GF5
  • Dimensions: Width 29 Inches, Height 25 Inches, Depth 21 Inches.
  • Weight: Approximately 165 lbs (74.8 kg)
  • Shipping Dimensions:   Length 48 Inches, Width 40 Inches, Height 35 Inches, Weight 215 lbs (95.5 kg)
  • Electrical Requirements:
    • USA: 208V/240V, 60Hz, Single Phase (NEMA #6-30R)
  • Power Consumption:
    • 208V USA (5760 Watts, 29 amps)
    • 208V Canada (5760 Watts, 21 amps)
    • 240V (5760 Watts, 24 amps)



Installation and Setup

  • Quik n' Crispy® GF5 Greaseless Fryer Shipment Includes:
    • Cooking basket assembly and handles
    • Drip tray
    • Three-piece air plenum
    • Removable front panel
    • Adjustable legs
    • Wire brush and scraper
    • Installation kit

  • Installation Recommendations:
    • Choose a location accessible to employees and close to other kitchen equipment.
    • Mount on a sturdy, stainless steel surface or food service table. (e.g. Quik n' Crispy Equipment Stand, Lite w/casters)
    • Requires a minimum clearance of 1" (2.54 cm) from adjacent walls or equipment
    • Ensure proper electrical connections per the specifications
    • Simple setup with clear instructions provided in the owner's manual.

Maintenance and Cleaning

  • Easy Maintenance: Designed for easy, toolless disassembly and cleaning with removable components like the Cooking Basket, Drip Tray, and Air Plenum.
  • Cleaning Procedures:
    • Daily cleaning involves brushing and scraping food particles from the Cooking Basket and Drip Tray.
    • Weekly cleaning includes thorough washing and degreasing of components.
    • Filters should be cleaned weekly and replaced every 1-3 months (depending on usage) to ensure optimal performance.
  • Service and Support: Backed by a 1-year limited warranty on parts and 90-Day limited warranty on labor. Dedicated customer service support available for any operational questions or service requirements.
